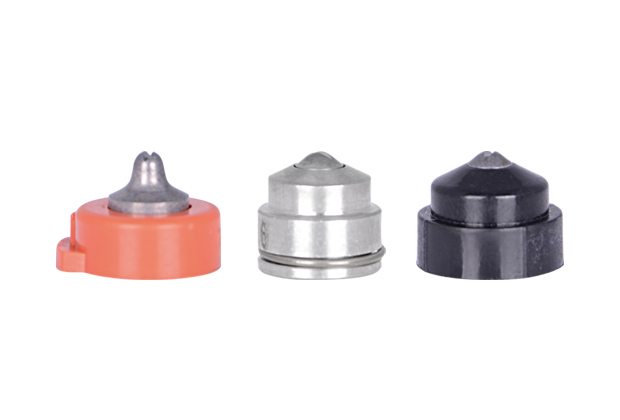

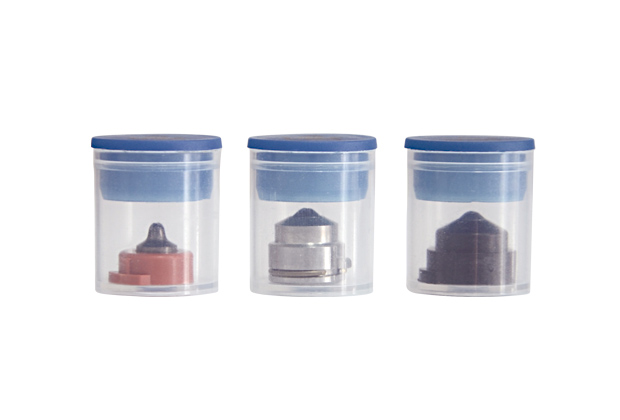

固瑞克静电喷嘴产品介绍：
1.AEF喷嘴 - 适用Pro Xp AA静电喷枪系列，推荐用于水性涂料及清漆在内的稀薄材料；
2.GG3喷嘴 - 使用空气辅助静电喷枪（Pro Xs AA系列）。
3.AEM喷嘴 - 适用Pro Xp AA静电喷枪系列，推荐用于要求高品质涂层的中低压应用；
| AEM 喷嘴系列（部件号AEMxxx）—适用Pro Xp AA静电喷枪系列，推荐用于要求高品质涂层的中低压应用 | |||||||||||
|
喷 嘴 类 型 |
口径 in.(mm) |
流体输出 fl oz/min (l/min) |
距离为 12 英寸(305mm)时的最大喷幅宽度 | ||||||||
|
600 psi (4.1 Mpa, 41 bar) |
1000 psi (7.0 Mpa, 70 bar) |
2-4 (50-100) |
4-6 (100-150) |
6-8 (150-200) |
8-10 (200-250) |
10-12 (250-300) |
12-14 (300-350) |
14-16 (350-400) |
16-18 (400-450) |
||
|
A E M 喷 嘴 |
† 0.007 (0.178) |
4.0 (0.1) |
5.2 (0.15) |
107 | 207 | 307 | |||||
|
† 0.009 (0.229) |
7.0 (0.2) |
9.1 (0.27) |
209 | 309 | 409 | 509 | 609 | ||||
|
† 0.011 (0.279) |
10.0 (0.3) |
13.0 (0.4) |
211 | 311 | 411 | 511 | 611 | 711 | |||
|
0.013 (0.330) |
13.0 (0.4) |
16.9 (0.5) |
213 | 313 | 413 | 513 | 613 | 713 | 813 | ||
|
0.015 (0.381) |
17.0 (0.5) |
22.0 (0.7) |
215 | 315 | 415 | 515 | 615 | 715 | 815 | ||
|
0.017 (0.432) |
22.0 (0.7) |
28.5 (0.85) |
217 | 317 | 417 | 517 | 617 | 717 | |||
|
0.019 (0.483) |
28.0 (0.8) |
36.3 (1.09) |
319 | 419 | 519 | 619 | 719 | ||||
|
0.021 (0.533) |
35.0 (1.0) |
45.4 (1.36) |
421 | 521 | 621 | 721 | 821 | ||||
|
0.023 (0.584) |
40.0 (1.2) |
51.9 (1.56) |
423 | 523 | 623 | 723 | 823 | ||||
|
0.025 (0.635) |
50.0 (1.5) |
64.8 (1.94) |
425 | 525 | 625 | 725 | 825 | ||||
|
0.029 (0.736) |
68.0 (1.9) |
88.2 (2.65) |
829 | ||||||||
|
0.031 (0.787) |
78.0 (2.2) |
101.1 (3.03) |
431 | 631 | 831 | ||||||
|
0.033 (0.838) |
88.0 (2.5) |
114.1 (3.42) |
833 | ||||||||
|
0.037 (0.939) |
108.0 (3.1) |
140.0 (4.20) |
737 | ||||||||
|
0.039 (0.990) |
118.0 (3.4) |
153.0 (4.59) |
539 | ||||||||
| AEF 带预喷口精饰型喷嘴系列（部件号AEF xxx）—适用Pro Xp AA静电喷枪系列，推荐用于水性涂料及清漆在内的稀薄材料 | |||||||||
|
喷 嘴 类 型 |
口径 in.(mm) |
流体输出 fl oz/min(l/min) | 距离为 12 英寸(305mm)时的最大喷幅宽度 | ||||||
|
600 psi (4.1 Mpa, 41 bar) |
1000 psi (7.0 Mpa, 70 bar) |
6-8 (150-200) |
8-10 (200-250) |
10-12 (250-300) |
12-14 (300-350) |
14-16 (350-400) |
16-18 (400-450) |
||
|
A E F 喷 嘴 |
† 0.010 (0.254) |
9.5 (0.28) |
12.5 (0.37) |
310 | 410 | 510 | 610 | 710 | |
|
0.012 (0.305) |
12.0 (0.35) |
16.0 (0.47) |
312 | 412 | 512 | 612 | 712 | 812 | |
|
0.014 (0.356) |
16.0 (0.47) |
21.0 (0.62) |
314 | 414 | 514 | 614 | 714 | 814 | |
|
0.016 (0.406) |
20.0 (0.59) |
26.5 (0.78) |
416 | 516 | 616 | 716 | |||
| GG3 喷嘴系列（部件号GG3xxx）—使用空气辅助静电喷枪（Pro Xs AA系列） | |||||||||
|
喷 嘴 类 型 |
口径 in.(mm) |
距离为 12 英寸(305mm)时的最大喷幅宽度 | |||||||
|
2-4 (51-102) |
4-6 (102-152) |
6-8 (152-203) |
8-10 (203-254) |
10-12 (254-305) |
12-14 (305-356) |
14-16 (356-406) |
16-18 (406-457) |
||
|
G G 3 喷 嘴 |
0.007 (0.178) |
107 | 207 | 307 | |||||
|
0.009 (0.229) |
209 | 309 | 409 | ||||||
|
0.011 (0.279) |
211 | 311 | 411 | 511 | 611 | ||||
|
0.013 (0.330) |
213 | 313 | 413 | 513 | 613 | ||||
|
0.015 (0.381) |
215 | 315 | 415 | 515 | 615 | ||||
|
0.017 (0.432) |
217 | 317 | 417 | 517 | 617 | ||||
|
0.019 (0.483) |
319 | 419 | 519 | 619 | 719 | ||||
|
0.021 (0.533) |
421 | 521 | 621 | 721 | 821 | ||||
|
0.023 (0.584) |
423 | 523 | 623 | 723 | 823 | ||||
|
0.025 (0.635) |
425 | 525 | 625 | 725 | 825 | ||||
